Oracle 19c hot backup mode? (一)

没有维护过oracle 8\9那个版本时,可能不会太接触这个热备份模式, 这个技术已经被RMAN所替代很多年,但是就是这个东西,让我们在最近一次19c 数据库故障中走了弯路, 数据库的内部某个机制触发了begin backup, 因为异常crash后又归档缺失,还尝试从备份做了恢复,最终还是使用bbed修改数据文件头异常恢复 ,目前为什么会处于备份模式还没有查到原因,不过提醒一下记的检查数据库是否有存在hot backup mode的文件,并分享什么是hot backup mode.

下面模拟一下 19c 多租户,注意如果做了重建控制文件,PDB名就显示为未知了,无法切换PDB,在第一次Open CDB时pdb名会自动找回。

[oracle@oel7db1 ~]$ sqlplus / as sysdba

SQL*Plus: Release 19.0.0.0.0 - Production on Sun Aug 2 04:44:15 2020
Version 19.3.0.0.0
Copyright (c) 1982, 2019, Oracle.  All rights reserved.

SQL> alter database archivelog;
Database altered.

SQL> alter database open;
Database altered.

SQL> show pdbs

    CON_ID CON_NAME                       OPEN MODE  RESTRICTED
---------- ------------------------------ ---------- ----------
         2 PDB$SEED                       READ ONLY  NO
         3 PDB1                           MOUNTED

SQL> alter pluggable database pdb1 open;
Pluggable database altered.

SQL> select * from v$backup;

     FILE# STATUS                CHANGE# TIME          CON_ID
---------- ------------------ ---------- --------- ----------
         1 NOT ACTIVE                  0                    1
         3 NOT ACTIVE                  0                    1
         4 NOT ACTIVE                  0                    1
         5 NOT ACTIVE                  0                    2
         6 NOT ACTIVE                  0                    2
         7 NOT ACTIVE                  0                    1
         8 NOT ACTIVE                  0                    2
         9 NOT ACTIVE                  0                    3
        10 NOT ACTIVE                  0                    3
        11 NOT ACTIVE                  0                    3
        12 NOT ACTIVE                  0                    3
       182 NOT ACTIVE                  0                    3

SQL> select a.con_id,a.name,b.file#,b.rfile#,b.checkpoint_change#,b.checkpoint_time,b.status from  v$containers a,v$datafile b where a.con_id=b.con_id order by

    CON_ID NAME            FILE#     RFILE# CHECKPOINT_CHANGE# CHECKPOINT_TIME     STATUS
---------- ---------- ---------- ---------- ------------------ ------------------- -------
         2 PDB$SEED            8          9            2144549 2020-03-20 06:14:40 ONLINE
         2 PDB$SEED            6          4            2144549 2020-03-20 06:14:40 ONLINE
         2 PDB$SEED            5          1            2144549 2020-03-20 06:14:40 SYSTEM
         3 PDB1              182        181            4102092 2020-06-16 05:25:52 ONLINE
         1 CDB$ROOT            4          4            5061692 2020-08-02 04:45:04 ONLINE
         1 CDB$ROOT            3          3            5061692 2020-08-02 04:45:04 ONLINE
         1 CDB$ROOT            1          1            5061692 2020-08-02 04:45:04 SYSTEM
         1 CDB$ROOT            7          7            5061692 2020-08-02 04:45:04 ONLINE
         3 PDB1               10          4            5062895 2020-08-02 04:46:20 ONLINE
         3 PDB1               11          9            5062895 2020-08-02 04:46:20 ONLINE
         3 PDB1               12         12            5062895 2020-08-02 04:46:20 ONLINE
         3 PDB1                9          1            5062895 2020-08-02 04:46:20 SYSTEM

12 rows selected.

SQL> alter database begin backup;
Database altered.

SQL> @log
Show redo log layout from V$LOG, V$STANDBY_LOG and V$LOGFILE...

    GROUP#    THREAD#  SEQUENCE#      BYTES  BLOCKSIZE    MEMBERS ARC STATUS                FIRST_CHANGE# FIRST_TIME                    NEXT_CHANGE# NEXT_TIME
---------- ---------- ---------- ---------- ---------- ---------- --- ---------------- ------------------ ------------------- ---------------------- ----------
         1          1         31  209715200        512          1 YES INACTIVE                    4920596 2020-07-28 05:04:50                5027660 2020-07-28
         2          1         32  209715200        512          1 NO  CURRENT                     5027660 2020-07-28 23:10:19   18446744073709551615
         3          1         30  209715200        512          1 YES INACTIVE                    4806829 2020-07-21 23:13:41                4920596 2020-07-28

SQL> alter system switch logfile;
System alered.
SQL> alter system switch logfile;
System altered.

SQL> alter system switch logfile;
System altered.

SQL> @log
Show redo log layout from V$LOG, V$STANDBY_LOG and V$LOGFILE...

    GROUP#    THREAD#  SEQUENCE#      BYTES  BLOCKSIZE    MEMBERS ARC STATUS                FIRST_CHANGE# FIRST_TIME                    NEXT_CHANGE# NEXT_TIME
---------- ---------- ---------- ---------- ---------- ---------- --- ---------------- ------------------ ------------------- ---------------------- ----------
         1          1         34  209715200        512          1 YES INACTIVE                    5063932 2020-08-02 04:51:47                5063936 2020-08-02
         2          1         35  209715200        512          1 NO  CURRENT                     5063936 2020-08-02 04:51:49   18446744073709551615
         3          1         33  209715200        512          1 YES INACTIVE                    5063929 2020-08-02 04:51:45                5063932 2020-08-02

SQL>  select a.con_id,a.name,b.file#,b.rfile#,b.checkpoint_change#,b.checkpoint_time,b.status from  v$containers a,v$datafile b where a.con_id=b.con_id order b

    CON_ID NAME            FILE#     RFILE# CHECKPOINT_CHANGE# CHECKPOINT_TIME     STATUS
---------- ---------- ---------- ---------- ------------------ ------------------- -------
         2 PDB$SEED            8          9            2144549 2020-03-20 06:14:40 ONLINE
         2 PDB$SEED            6          4            2144549 2020-03-20 06:14:40 ONLINE
         2 PDB$SEED            5          1            2144549 2020-03-20 06:14:40 SYSTEM
         3 PDB1              182        181            4102092 2020-06-16 05:25:52 ONLINE
         3 PDB1               10          4            5063905 2020-08-02 04:51:25 ONLINE
         3 PDB1               11          9            5063905 2020-08-02 04:51:25 ONLINE
         3 PDB1               12         12            5063905 2020-08-02 04:51:25 ONLINE
         3 PDB1                9          1            5063905 2020-08-02 04:51:25 SYSTEM
         1 CDB$ROOT            4          4            5063905 2020-08-02 04:51:25 ONLINE
         1 CDB$ROOT            3          3            5063905 2020-08-02 04:51:25 ONLINE
         1 CDB$ROOT            1          1            5063905 2020-08-02 04:51:25 SYSTEM
         1 CDB$ROOT            7          7            5063905 2020-08-02 04:51:25 ONLINE

12 rows selected.

SQL> alter system checkpoint;
System altered.

SQL>  select a.con_id,a.name,b.file#,b.rfile#,b.checkpoint_change#,b.checkpoint_time,b.status from  v$containers a,v$datafile b where a.con_id=b.con_id order b

    CON_ID NAME            FILE#     RFILE# CHECKPOINT_CHANGE# CHECKPOINT_TIME     STATUS
---------- ---------- ---------- ---------- ------------------ ------------------- -------
         2 PDB$SEED            8          9            2144549 2020-03-20 06:14:40 ONLINE
         2 PDB$SEED            6          4            2144549 2020-03-20 06:14:40 ONLINE
         2 PDB$SEED            5          1            2144549 2020-03-20 06:14:40 SYSTEM
         3 PDB1              182        181            4102092 2020-06-16 05:25:52 ONLINE
         3 PDB1               10          4            5063905 2020-08-02 04:51:25 ONLINE
         3 PDB1               11          9            5063905 2020-08-02 04:51:25 ONLINE
         3 PDB1               12         12            5063905 2020-08-02 04:51:25 ONLINE
         3 PDB1                9          1            5063905 2020-08-02 04:51:25 SYSTEM
         1 CDB$ROOT            4          4            5063905 2020-08-02 04:51:25 ONLINE
         1 CDB$ROOT            3          3            5063905 2020-08-02 04:51:25 ONLINE
         1 CDB$ROOT            1          1            5063905 2020-08-02 04:51:25 SYSTEM
         1 CDB$ROOT            7          7            5063905 2020-08-02 04:51:25 ONLINE

SQL> @dbinfo

      DBID NAME       CREATED             LOG_MODE     CHECKPOINT_CHANGE# OPEN_MODE            FORCE_LOGGING
---------- ---------- ------------------- ------------ ------------------ -------------------- ---------------------------------------
3414393273 ANBOB19C   2020-03-20 05:43:21 ARCHIVELOG              5063984 READ WRITE           NO


SQL> shut immediate
ORA-01149: cannot shutdown - file 1 has online backup set
ORA-01110: data file 1: '/u01/app/oracle/oradata/ANBOB19C/system01.dbf'
SQL> shut abort
ORACLE instance shut down.

[oracle@oel7db1 dbs]$ sqlplus / as sysdba

SQL*Plus: Release 19.0.0.0.0 - Production on Sun Aug 2 05:06:44 2020
Version 19.3.0.0.0
Copyright (c) 1982, 2019, Oracle.  All rights reserved.
Connected to an idle instance.

SQL> startup
ORACLE instance started.

Total System Global Area 1073738888 bytes
Fixed Size                  9143432 bytes
Variable Size             792723456 bytes
Database Buffers          268435456 bytes
Redo Buffers                3436544 bytes
Database mounted.
ORA-10873: file 1 needs to be either taken out of backup mode or media recovered
ORA-01110: data file 1: '/u01/app/oracle/oradata/ANBOB19C/system01.dbf'

SQL>  @log
Show redo log layout from V$LOG, V$STANDBY_LOG and V$LOGFILE...

    GROUP#    THREAD#  SEQUENCE#      BYTES  BLOCKSIZE    MEMBERS ARC STATUS                FIRST_CHANGE# FIRST_TIME                    NEXT_CHANGE# NEXT_TIME
---------- ---------- ---------- ---------- ---------- ---------- --- ---------------- ------------------ ------------------- ---------------------- ----------
         1          1         37  209715200        512          1 NO  CURRENT                     5063951 2020-08-02 04:52:15   18446744073709551615
         2          1         35  209715200        512          1 YES INACTIVE                    5063936 2020-08-02 04:51:49                5063947 2020-08-02
         3          1         36  209715200        512          1 YES INACTIVE                    5063947 2020-08-02 04:52:13                5063951 2020-08-02

SQL> select a.con_id,a.name,b.file#,b.rfile#,b.checkpoint_change#,b.checkpoint_time,b.status from
  v$containers a,v$datafile b where a.con_id=b.con_id order by

    CON_ID NAME                      FILE#     RFILE# CHECKPOINT_CHANGE# CHECKPOINT_TIME     STATUS
---------- -------------------- ---------- ---------- ------------------ ------------------- -------
         2 PDB$SEED                      8          9            2144549 2020-03-20 06:14:40 ONLINE
         2 PDB$SEED                      5          1            2144549 2020-03-20 06:14:40 SYSTEM
         2 PDB$SEED                      6          4            2144549 2020-03-20 06:14:40 ONLINE
         3 PDB1                        182        181            4102092 2020-06-16 05:25:52 ONLINE
         3 PDB1                         10          4            5063905 2020-08-02 04:51:25 ONLINE
         3 PDB1                         12         12            5063905 2020-08-02 04:51:25 ONLINE
         3 PDB1                         11          9            5063905 2020-08-02 04:51:25 ONLINE
         1 CDB$ROOT                      1          1            5063905 2020-08-02 04:51:25 SYSTEM
         3 PDB1                          9          1            5063905 2020-08-02 04:51:25 SYSTEM
         1 CDB$ROOT                      4          4            5063905 2020-08-02 04:51:25 ONLINE
         1 CDB$ROOT                      3          3            5063905 2020-08-02 04:51:25 ONLINE
         1 CDB$ROOT                      7          7            5063905 2020-08-02 04:51:25 ONLINE

12 rows selected.

SQL> select a.con_id,a.name,b.file#,b.rfile#,b.checkpoint_change#,b.checkpoint_time,b.status
from  v$containers a,v$datafile_header b where a.con_id=b.con_id o

    CON_ID NAME                      FILE#     RFILE# CHECKPOINT_CHANGE# CHECKPOINT_TIME     STATUS
---------- -------------------- ---------- ---------- ------------------ ------------------- -------
         2 PDB$SEED                      8          9            2144549 2020-03-20 06:14:40 ONLINE
         2 PDB$SEED                      5          1            2144549 2020-03-20 06:14:40 ONLINE
         2 PDB$SEED                      6          4            2144549 2020-03-20 06:14:40 ONLINE
         3 PDB1                        182        181            4102092 2020-06-16 05:25:52 ONLINE
         3 PDB1                         10          4            5063905 2020-08-02 04:51:25 ONLINE
         3 PDB1                         12         12            5063905 2020-08-02 04:51:25 ONLINE
         3 PDB1                         11          9            5063905 2020-08-02 04:51:25 ONLINE
         1 CDB$ROOT                      1          1            5063905 2020-08-02 04:51:25 ONLINE
         3 PDB1                          9          1            5063905 2020-08-02 04:51:25 ONLINE
         1 CDB$ROOT                      4          4            5063905 2020-08-02 04:51:25 ONLINE
         1 CDB$ROOT                      3          3            5063905 2020-08-02 04:51:25 ONLINE
         1 CDB$ROOT                      7          7            5063905 2020-08-02 04:51:25 ONLINE

12 rows selected.

SQL> alter database datafile 1 end backup;
Database altered.

SQL> select a.con_id,a.name,b.file#,b.rfile#,b.checkpoint_change#,b.checkpoint_time,b.status from  v$containers a,v$datafile_header b where a.con_id=b.con_id o

    CON_ID NAME                      FILE#     RFILE# CHECKPOINT_CHANGE# CHECKPOINT_TIME     STATUS
---------- -------------------- ---------- ---------- ------------------ ------------------- -------
         2 PDB$SEED                      8          9            2144549 2020-03-20 06:14:40 ONLINE
         2 PDB$SEED                      5          1            2144549 2020-03-20 06:14:40 ONLINE
         2 PDB$SEED                      6          4            2144549 2020-03-20 06:14:40 ONLINE
         3 PDB1                        182        181            4102092 2020-06-16 05:25:52 ONLINE
         3 PDB1                         10          4            5063905 2020-08-02 04:51:25 ONLINE
         3 PDB1                         12         12            5063905 2020-08-02 04:51:25 ONLINE
         3 PDB1                         11          9            5063905 2020-08-02 04:51:25 ONLINE
         3 PDB1                          9          1            5063905 2020-08-02 04:51:25 ONLINE
         1 CDB$ROOT                      4          4            5063905 2020-08-02 04:51:25 ONLINE
         1 CDB$ROOT                      3          3            5063905 2020-08-02 04:51:25 ONLINE
         1 CDB$ROOT                      7          7            5063905 2020-08-02 04:51:25 ONLINE
         1 CDB$ROOT                      1          1            5063984 2020-08-02 04:53:31 ONLINE

12 rows selected.

SQL> alter database datafile 9 end backup;
alter database datafile 9 end backup
*
ERROR at line 1:
ORA-01516: nonexistent log file, data file, or temporary file "9" in the current container

SQL> alter pluggable database datafile 9 end backup;
alter pluggable database datafile 9 end backup
*
ERROR at line 1:
ORA-01109: database not open


SQL> @cc pdb1;
ALTER SESSION SET container = pdb1;
Session altered.
--如果重建了控制文件,这一步就没法做了,因为pdb名字未知.

SQL> alter pluggable database datafile 9 end backup;

Pluggable database altered.

SQL> alter database datafile 11 end backup;

Database altered.

SQL> select a.con_id,a.name,b.file#,b.rfile#,b.checkpoint_change#,b.checkpoint_time,b.status from  v$containers a,v$datafile_header b where a.con_id=b.con_id o

    CON_ID NAME                      FILE#     RFILE# CHECKPOINT_CHANGE# CHECKPOINT_TIME     STATUS
---------- -------------------- ---------- ---------- ------------------ ------------------- -------
         3 PDB1                        182        181            4102092 2020-06-16 05:25:52 ONLINE
         3 PDB1                         10          4            5063905 2020-08-02 04:51:25 ONLINE
         3 PDB1                         12         12            5063905 2020-08-02 04:51:25 ONLINE
         3 PDB1                         11          9            5063984 2020-08-02 04:53:31 ONLINE
         3 PDB1                          9          1            5063984 2020-08-02 04:53:31 ONLINE

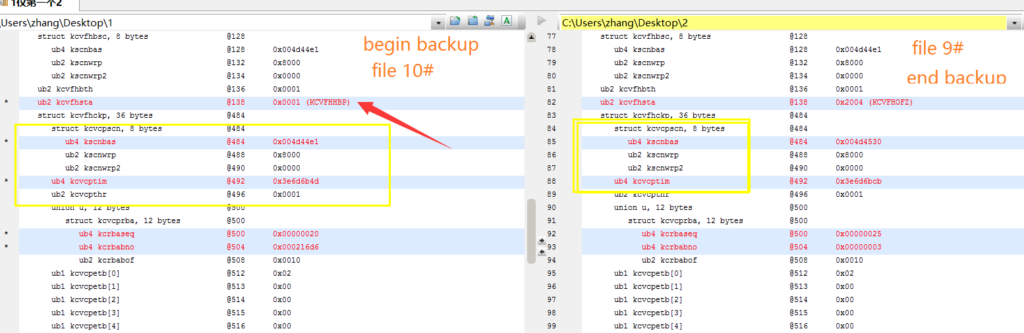

使用bbed对比begin backup还没有结束的和已经end backup的两个文件头

SQL> select file#,name from v$datafile;

     FILE# NAME
---------- -------------------------------------------------------
         9 /u01/app/oracle/oradata/ANBOB19C/pdb1/system01.dbf
        10 /u01/app/oracle/oradata/ANBOB19C/pdb1/sysaux01.dbf
        11 /u01/app/oracle/oradata/ANBOB19C/pdb1/undotbs01.dbf
        12 /u01/app/oracle/oradata/ANBOB19C/pdb1/users01.dbf
       182 /u01/app/oracle/oradata/ANBOB19C/pdb1/tbs101.dbf

SQL> select to_char(5063984,'xxxxxxxxxxxx') from dual;

TO_CHAR(50639
-------------
       4d4530

SQL> select to_char(5063905,'xxxxxxxxxxxx') from dual;

TO_CHAR(50639
-------------
       4d44e1
-- file 10#
[oracle@oel7db1 ~]$ bbed blocksize=8192 mode=edit filename=/u01/app/oracle/oradata/ANBOB19C/pdb1/sysaux01.dbf
Password:

BBED: Release 2.0.0.0.0 - Limited Production on Sun Aug 2 05:22:14 2020

Copyright (c) 1982, 2019, Oracle and/or its affiliates.  All rights reserved.

************* !!! For Oracle Internal Use only !!! ***************


BBED> p kcvfh
struct kcvfh, 1272 bytes                    @0
   struct kcvfhbfh, 20 bytes                @0
      ub1 type_kcbh                         @0        0x0b
      ub1 frmt_kcbh                         @1        0xa2
      ub2 wrp2_kcbh                         @2        0x0000
      ub4 rdba_kcbh                         @4        0x01000001
      ub4 bas_kcbh                          @8        0x00000000
      ub2 wrp_kcbh                          @12       0x0000
      ub1 seq_kcbh                          @14       0x01
      ub1 flg_kcbh                          @15       0x04 (KCBHFCKV)
      ub2 chkval_kcbh                       @16       0xb992
      ub2 spare3_kcbh                       @18       0x0000
   struct kcvfhhdr, 76 bytes                @20
      ub4 kccfhswv                          @20       0x00000000
      ub4 kccfhcvn                          @24       0x13000000
      ub4 kccfhdbi                          @28       0xcb8381b9
      text kccfhdbn[0]                      @32      A
      text kccfhdbn[1]                      @33      N
      text kccfhdbn[2]                      @34      B
      text kccfhdbn[3]                      @35      O
      text kccfhdbn[4]                      @36      B
      text kccfhdbn[5]                      @37      1
      text kccfhdbn[6]                      @38      9
      text kccfhdbn[7]                      @39      C
      ub4 kccfhcsq                          @40       0x00003330
      ub4 kccfhfsz                          @44       0x0000c800
      s_blkz kccfhbsz                       @48       0x00
      ub2 kccfhfno                          @52       0x000a
      ub2 kccfhtyp                          @54       0x0003
      ub4 kccfhacid                         @56       0x00000000
      ub4 kccfhcks                          @60       0x00000000
      text kccfhtag[0]                      @64
      text kccfhtag[1]                      @65
      text kccfhtag[2]                      @66
      text kccfhtag[3]                      @67
      text kccfhtag[4]                      @68
      text kccfhtag[5]                      @69
      text kccfhtag[6]                      @70
      text kccfhtag[7]                      @71
      text kccfhtag[8]                      @72
      text kccfhtag[9]                      @73
      text kccfhtag[10]                     @74
      text kccfhtag[11]                     @75
      text kccfhtag[12]                     @76
      text kccfhtag[13]                     @77
      text kccfhtag[14]                     @78
      text kccfhtag[15]                     @79
      text kccfhtag[16]                     @80
      text kccfhtag[17]                     @81
      text kccfhtag[18]                     @82
      text kccfhtag[19]                     @83
      text kccfhtag[20]                     @84
      text kccfhtag[21]                     @85
      text kccfhtag[22]                     @86
      text kccfhtag[23]                     @87
      text kccfhtag[24]                     @88
      text kccfhtag[25]                     @89
      text kccfhtag[26]                     @90
      text kccfhtag[27]                     @91
      text kccfhtag[28]                     @92
      text kccfhtag[29]                     @93
      text kccfhtag[30]                     @94
      text kccfhtag[31]                     @95
   ub4 kcvfhrdb                             @96       0x00400208
   struct kcvfhcrs, 8 bytes                 @100
      ub4 kscnbas                           @100      0x0020bdd8
      ub2 kscnwrp                           @104      0x8000
      ub2 kscnwrp2                          @106      0x0000
   ub4 kcvfhcrt                             @108      0x3db8e18f
   ub4 kcvfhrlc                             @112      0x3db8d9fe
   struct kcvfhrls, 8 bytes                 @116
      ub4 kscnbas                           @116      0x001d4fd1
      ub2 kscnwrp                           @120      0x8000
      ub2 kscnwrp2                          @122      0x0000
   ub4 kcvfhbti                             @124      0x3e6d6b4d
   struct kcvfhbsc, 8 bytes                 @128
      ub4 kscnbas                           @128      0x004d44e1
      ub2 kscnwrp                           @132      0x8000
      ub2 kscnwrp2                          @134      0x0000
   ub2 kcvfhbth                             @136      0x0001
   ub2 kcvfhsta                             @138      0x0001 (KCVFHHBP)
   struct kcvfhckp, 36 bytes                @484
      struct kcvcpscn, 8 bytes              @484
         ub4 kscnbas                        @484      0x004d44e1
         ub2 kscnwrp                        @488      0x8000
         ub2 kscnwrp2                       @490      0x0000
      ub4 kcvcptim                          @492      0x3e6d6b4d
      ub2 kcvcpthr                          @496      0x0001
      union u, 12 bytes                     @500
         struct kcvcprba, 12 bytes          @500
            ub4 kcrbaseq                    @500      0x00000020
            ub4 kcrbabno                    @504      0x000216d6
            ub2 kcrbabof                    @508      0x0010
      ub1 kcvcpetb[0]                       @512      0x02
      ub1 kcvcpetb[1]                       @513      0x00
      ub1 kcvcpetb[2]                       @514      0x00
      ub1 kcvcpetb[3]                       @515      0x00
      ub1 kcvcpetb[4]                       @516      0x00
      ub1 kcvcpetb[5]                       @517      0x00
      ub1 kcvcpetb[6]                       @518      0x00
      ub1 kcvcpetb[7]                       @519      0x00
   ub4 kcvfhcpc                             @140      0x0000008f
   ub4 kcvfhrts                             @144      0x3e5e9ba4
   ub4 kcvfhccc                             @148      0x0000008e
   struct kcvfhbcp, 36 bytes                @152
      struct kcvcpscn, 8 bytes              @152
         ub4 kscnbas                        @152      0x004d4530
         ub2 kscnwrp                        @156      0x8000
         ub2 kscnwrp2                       @158      0x0000
      ub4 kcvcptim                          @160      0x3e6d6bcb
      ub2 kcvcpthr                          @164      0x0001
      union u, 12 bytes                     @168
         struct kcvcprba, 12 bytes          @168
            ub4 kcrbaseq                    @168      0x00000025
            ub4 kcrbabno                    @172      0x00000003
            ub2 kcrbabof                    @176      0x0010
      ub1 kcvcpetb[0]                       @180      0x02
      ub1 kcvcpetb[1]                       @181      0x00
      ub1 kcvcpetb[2]                       @182      0x00
      ub1 kcvcpetb[3]                       @183      0x00
      ub1 kcvcpetb[4]                       @184      0x00
      ub1 kcvcpetb[5]                       @185      0x00
      ub1 kcvcpetb[6]                       @186      0x00
      ub1 kcvcpetb[7]                       @187      0x00
   ub4 kcvfhbhz                             @312      0x0000c800
   struct kcvfhxcd, 16 bytes                @316
      ub4 space_kcvmxcd[0]                  @316      0x00000000
      ub4 space_kcvmxcd[1]                  @320      0x00000000
      ub4 space_kcvmxcd[2]                  @324      0x00000000
      ub4 space_kcvmxcd[3]                  @328      0x00000000
   sword kcvfhtsn                           @332      1
   ub2 kcvfhtln                             @336      0x0006
   text kcvfhtnm[0]                         @338     S
   text kcvfhtnm[1]                         @339     Y
   text kcvfhtnm[2]                         @340     S
   text kcvfhtnm[3]                         @341     A
   text kcvfhtnm[4]                         @342     U
   text kcvfhtnm[5]                         @343     X
   text kcvfhtnm[6]                         @344
   text kcvfhtnm[7]                         @345
   text kcvfhtnm[8]                         @346
   text kcvfhtnm[9]                         @347
   text kcvfhtnm[10]                        @348
   text kcvfhtnm[11]                        @349
   text kcvfhtnm[12]                        @350
   text kcvfhtnm[13]                        @351
   text kcvfhtnm[14]                        @352
   text kcvfhtnm[15]                        @353
   text kcvfhtnm[16]                        @354
   text kcvfhtnm[17]                        @355
   text kcvfhtnm[18]                        @356
   text kcvfhtnm[19]                        @357
   text kcvfhtnm[20]                        @358
   text kcvfhtnm[21]                        @359
   text kcvfhtnm[22]                        @360
   text kcvfhtnm[23]                        @361
   text kcvfhtnm[24]                        @362
   text kcvfhtnm[25]                        @363
   text kcvfhtnm[26]                        @364
   text kcvfhtnm[27]                        @365
   text kcvfhtnm[28]                        @366
   text kcvfhtnm[29]                        @367
   ub4 kcvfhrfn                             @368      0x00000004
   struct kcvfhrfs, 8 bytes                 @372
      ub4 kscnbas                           @372      0x00000000
      ub2 kscnwrp                           @376      0x0000
      ub2 kscnwrp2                          @378      0x0000
   ub4 kcvfhrft                             @380      0x00000000
   struct kcvfhafs, 8 bytes                 @384
      ub4 kscnbas                           @384      0x00000000
      ub2 kscnwrp                           @388      0x0000
      ub2 kscnwrp2                          @390      0x0000
   ub4 kcvfhbbc                             @392      0x00000000
   ub4 kcvfhncb                             @396      0x00000000
   ub4 kcvfhmcb                             @400      0x00000000
   ub4 kcvfhlcb                             @404      0x00000000
   ub4 kcvfhbcs                             @408      0x00000000
   ub2 kcvfhofb                             @412      0x0000
   ub2 kcvfhnfb                             @414      0x0000
   ub4 kcvfhprc                             @416      0x3bf3129f
   struct kcvfhprs, 8 bytes                 @420
      ub4 kscnbas                           @420      0x00000001
      ub2 kscnwrp                           @424      0x0000
      ub2 kscnwrp2                          @426      0x0000
   struct kcvfhprfs, 8 bytes                @428
      ub4 kscnbas                           @428      0x00000000
      ub2 kscnwrp                           @432      0x0000
      ub2 kscnwrp2                          @434      0x0000
   ub4 kcvfhtrt                             @444      0x00000000

BBED>

# file 9#
BBED> set filename '/u01/app/oracle/oradata/ANBOB19C/pdb1/system01.dbf';
        FILENAME        /u01/app/oracle/oradata/ANBOB19C/pdb1/system01.dbf

-- like above

放到UE中对比差异,当然出了块地址还块号相关的,我们主要关注checkpoint相关.

如果不做begin backup查询x$kcvfh.FHBCP_SCN默认为0否则不为0,当end backup时是 x$kcvfh.FHSCN=x$kcvfh.FHBCP_SCN。当然常规推scn 是无法解决的,使用bbed 修改kcvfhckp的SCN 为kcvfhbcp的SCN。当然数据文件多,可以使用bbed 复制该结构到不同数据文件如:

assign file 1 block 1 kcvfhckp = file 140 block 1 kcvfhckp
assign file 3 block 1 kcvfhckp = file 140 block 1 kcvfhckp

如果数据文件在ASM中可能又要麻烦一些,可以使得dbms_diskgroup提供的内部方法dbms_diskgroup.patchfile去传递ASM和文件系统的文件头块。

Checkpoint Count
Allow detection of a restored data file or control File
Incremented at every checkpoint
Checkpoint Structure
Records the last checkpoint information
Frozen when file is in hot backup mode
Backup checkpoint SCN
Updated during hot backups
Used in conjunction with the alter database end backup command
If the checkpoint count and the backup checkpoint structure match the information found in the control file , the end backup command succeeds and clears the hot backup fuzzy bit.

下一篇是hot backup MODE的知识。

打赏

,

对不起,这篇文章暂时关闭评论。
