Troubleshooting oracle 11.2.0.4 RAC crsd.bin is not running after replace VD and OCR(Storage device)

环境oracle 11.2.0.4 2-nodes RAC on linux, 客户做了存储设备更换,像RAC 依赖的设备VD/OCR 通过增加NEW ASM DISKGROUP方式替换,做完以后当时RAC资源都正常,此日重启CRS服务发现crsd.bin进程一直失败,两个节点相同CRS无法启动,CSSD、GIPC\GPNP均启动正常,但ASM实例启动正常,DB手动启动也可以正常open, 后分析crs日志发现crs为启动后crash, 这里简单记录该问题。

CRSD启动失败的常见原因:

– ocssd.bin启动失败
– ASM 无法启动
– OCR 无法访问
– OLR 配置错误路径或两节点不一致
– gpnp profile网络配置错误(crsd.log show Shutdown CacheLocal. my hash ids don’t match’)
– $GRID_HOME/crs/init/.pid 文件不存在或被删除
– private network不通

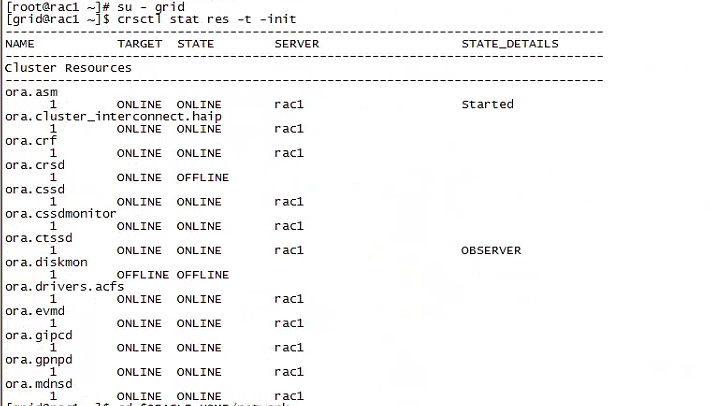

可是这个案例上面的可能都排除了,只有crsd当前是offline.

GI alert log

2023-02-26 21:13:24.904:
[gpnpd(62897)]CRS-2328:GPNPD started on node rac1.
2023-02-26 21:13:27.250:
[cssd(63016)]CRS-1713:CSSD daemon is started in clustered mode
2023-02-26 21:13:29.083:
[ohasd(62747)]CRS-2767:Resource state recovery not attempted for 'ora.diskmon' as its target state is OFFLINE
2023-02-26 21:13:50.466:
[cssd(63016)]CRS-1707:Lease acquisition for node rac1 number 1 completed
2023-02-26 21:13:51.709:
[cssd(63016)]CRS-1605:CSSD voting file is online: /dev/mapper/STORAGE_ORA_OCR1; details in /u01/app/11.2.0/grid/log/rac1/cssd/ocssd.log.
2023-02-26 21:13:51.713:
[cssd(63016)]CRS-1605:CSSD voting file is online: /dev/mapper/STORAGE_ORA_OCR3; details in /u01/app/11.2.0/grid/log/rac1/cssd/ocssd.log.
2023-02-26 21:13:51.725:
[cssd(63016)]CRS-1605:CSSD voting file is online: /dev/mapper/STORAGE_ORA_OCR2; details in /u01/app/11.2.0/grid/log/rac1/cssd/ocssd.log.
2023-02-26 21:14:00.844:
[cssd(63016)]CRS-1601:CSSD Reconfiguration complete. Active nodes are rac1 .
2023-02-26 21:14:03.257:
[ctssd(64745)]CRS-2403:The Cluster Time Synchronization Service on host rac1 is in observer mode.
2023-02-26 21:14:03.514:
[ctssd(64745)]CRS-2407:The new Cluster Time Synchronization Service reference node is host rac1.
2023-02-26 21:14:03.515:
[ctssd(64745)]CRS-2401:The Cluster Time Synchronization Service started on host rac1.
2023-02-26 21:14:05.250:
[ohasd(62747)]CRS-2767:Resource state recovery not attempted for 'ora.diskmon' as its target state is OFFLINE
[client(64822)]CRS-10001:26-Feb-23 21:14 ACFS-9391: Checking for existing ADVM/ACFS installation.
[client(64827)]CRS-10001:26-Feb-23 21:14 ACFS-9392: Validating ADVM/ACFS installation files for operating system.
[client(64829)]CRS-10001:26-Feb-23 21:14 ACFS-9393: Verifying ASM Administrator setup.
[client(64832)]CRS-10001:26-Feb-23 21:14 ACFS-9308: Loading installed ADVM/ACFS drivers.
[client(64835)]CRS-10001:26-Feb-23 21:14 ACFS-9154: Loading 'oracleoks.ko' driver.
[client(64868)]CRS-10001:26-Feb-23 21:14 ACFS-9154: Loading 'oracleadvm.ko' driver.
[client(64920)]CRS-10001:26-Feb-23 21:14 ACFS-9154: Loading 'oracleacfs.ko' driver.
[client(64992)]CRS-10001:26-Feb-23 21:14 ACFS-9327: Verifying ADVM/ACFS devices.
[client(64997)]CRS-10001:26-Feb-23 21:14 ACFS-9156: Detecting control device '/dev/asm/.asm_ctl_spec'.
[client(65001)]CRS-10001:26-Feb-23 21:14 ACFS-9156: Detecting control device '/dev/ofsctl'.
[client(65006)]CRS-10001:26-Feb-23 21:14 ACFS-9322: completed
2023-02-26 21:14:27.136:
[crsd(67060)]CRS-1012:The OCR service started on node rac1.
2023-02-26 21:14:27.304:
[evmd(64766)]CRS-1401:EVMD started on node rac1.
2023-02-26 21:14:28.316:
[crsd(67060)]CRS-1201:CRSD started on node rac1.
2023-02-26 21:14:31.502:
[ohasd(62747)]CRS-2765:Resource 'ora.crsd' has failed on server 'rac1'.
2023-02-26 21:14:33.223:
[crsd(67311)]CRS-1012:The OCR service started on node rac1.
2023-02-26 21:14:33.657:
[crsd(67311)]CRS-1201:CRSD started on node rac1.
2023-02-26 21:14:35.984:
[ohasd(62747)]CRS-2765:Resource 'ora.crsd' has failed on server 'rac1'.
2023-02-26 21:14:37.560:
[crsd(68084)]CRS-1012:The OCR service started on node rac1.
2023-02-26 21:14:38.057:
[crsd(68084)]CRS-1201:CRSD started on node rac1.
2023-02-26 21:14:40.272:
[ohasd(62747)]CRS-2765:Resource 'ora.crsd' has failed on server 'rac1'.
2023-02-26 21:14:41.992:
[crsd(68264)]CRS-1012:The OCR service started on node rac1.
2023-02-26 21:14:42.503:
[crsd(68264)]CRS-1201:CRSD started on node rac1.
2023-02-26 21:14:44.853:
[ohasd(62747)]CRS-2765:Resource 'ora.crsd' has failed on server 'rac1'.
2023-02-26 21:14:46.563:
[crsd(68443)]CRS-1012:The OCR service started on node rac1.
2023-02-26 21:14:47.033:
[crsd(68443)]CRS-1201:CRSD started on node rac1.
2023-02-26 21:14:49.141:
[ohasd(62747)]CRS-2765:Resource 'ora.crsd' has failed on server 'rac1'.
2023-02-26 21:14:50.710:
[crsd(68622)]CRS-1012:The OCR service started on node rac1.
2023-02-26 21:14:51.088:
[crsd(68622)]CRS-1201:CRSD started on node rac1.
2023-02-26 21:14:53.932:
[ohasd(62747)]CRS-2765:Resource 'ora.crsd' has failed on server 'rac1'.
2023-02-26 21:14:55.502:
[crsd(68845)]CRS-1012:The OCR service started on node rac1.
2023-02-26 21:14:55.954:
[crsd(68845)]CRS-1201:CRSD started on node rac1.
2023-02-26 21:14:57.984:
[ohasd(62747)]CRS-2765:Resource 'ora.crsd' has failed on server 'rac1'.
2023-02-26 21:14:59.694:
[crsd(69093)]CRS-1012:The OCR service started on node rac1.
2023-02-26 21:15:01.141:
[crsd(69093)]CRS-1201:CRSD started on node rac1.
2023-02-26 21:15:03.523:
[ohasd(62747)]CRS-2765:Resource 'ora.crsd' has failed on server 'rac1'.
2023-02-26 21:15:05.093:
[crsd(69272)]CRS-1012:The OCR service started on node rac1.
2023-02-26 21:15:05.527:
[crsd(69272)]CRS-1201:CRSD started on node rac1.
2023-02-26 21:15:07.688:
[ohasd(62747)]CRS-2765:Resource 'ora.crsd' has failed on server 'rac1'.
2023-02-26 21:15:09.266:
[crsd(69461)]CRS-1012:The OCR service started on node rac1.
2023-02-26 21:15:09.709:
[crsd(69461)]CRS-1201:CRSD started on node rac1.
2023-02-26 21:15:11.803:
[ohasd(62747)]CRS-2765:Resource 'ora.crsd' has failed on server 'rac1'.
2023-02-26 21:15:13.469:
[crsd(69634)]CRS-1012:The OCR service started on node rac1.
2023-02-26 21:15:13.872:
[crsd(69634)]CRS-1201:CRSD started on node rac1.
2023-02-26 21:15:17.125:
[ohasd(62747)]CRS-2765:Resource 'ora.crsd' has failed on server 'rac1'.
2023-02-26 21:15:17.125:
[ohasd(62747)]CRS-2771:Maximum restart attempts reached for resource 'ora.crsd'; will not restart.
2023-02-26 21:15:41.586:
[cssd(63016)]CRS-1625:Node rac2, number 2, was shut down

Note:
可见ora.crsd是启动成功,但反复fail再restart,最后放弃。

CRSD LOG

2023-02-26 21:15:13.883: [ CRSCOMM][1472685856] IpcL: gipcListen() succeeded
2023-02-26 21:15:13.883: [CLSFRAME][1472685856] Tints initialized with nodeId: 1 procId: 14710174
2023-02-26 21:15:13.883: [CLSFRAME][1472685856] Starting thread model named: AgfwProxySrvTM
2023-02-26 21:15:13.883: [CLSFRAME][1472685856] Starting thread model named: OcrModuleTM
2023-02-26 21:15:13.883: [CLSFRAME][1472685856] Starting thread model named: PolicyEngineTM
2023-02-26 21:15:13.884: [CLSFRAME][1472685856] Starting thread model named: TimerSharedTM
2023-02-26 21:15:13.884: [CLSFRAME][1472685856] New Framework state: 3
2023-02-26 21:15:13.884: [  CRSRPT][626431744]{1:30336:2} Enabled
2023-02-26 21:15:13.884: [   CRSPE][628532992]{1:30336:2} PE Role|State Update: old role [INVALID] new [INVALID]; old state [Not yet initialized] new [Enabling: waiting for role]
2023-02-26 21:15:13.885: [   CRSSE][626431744]{1:30336:2} Master Change Event; New Master Node ID:1 This Node's ID:1
2023-02-26 21:15:13.885: [   CRSPE][628532992]{1:30336:2} PE Role|State Update: old role [INVALID] new [MASTER]; old state [Enabling: waiting for role] new [Configuring]
2023-02-26 21:15:13.885: [   CRSPE][628532992]{1:30336:2} PE MASTER NAME: rac1
2023-02-26 21:15:13.885: [   CRSPE][628532992]{1:30336:2} Starting to read configuration
2023-02-26 21:15:13.891: [   CRSPE][628532992]{1:30336:2} Reading (2) servers
2023-02-26 21:15:13.893: [   CRSPE][628532992]{1:30336:2} DM: set global config version to: 387
2023-02-26 21:15:13.893: [   CRSPE][628532992]{1:30336:2} DM: set pool freeze timeout to: 60000
2023-02-26 21:15:13.893: [   CRSPE][628532992]{1:30336:2} DM: Set event seq number to: 42300000
2023-02-26 21:15:13.893: [   CRSPE][628532992]{1:30336:2} DM: Set threshold event seq number to: 42380000
2023-02-26 21:15:13.893: [   CRSPE][628532992]{1:30336:2} Sent request to write event sequence number 42400000 to repository
2023-02-26 21:15:13.922: [   CRSPE][628532992]{1:30336:2} Wrote new event sequence to repository
2023-02-26 21:15:13.945: [   CRSPE][628532992]{1:30336:2} Reading (16) types
2023-02-26 21:15:13.952: [   CRSPE][628532992]{1:30336:2} Reading (4) server pools
2023-02-26 21:15:13.955: [   CRSPE][628532992]{1:30336:2} Reading (22) resources
2023-02-26 21:15:14.228: [   CRSPE][628532992]{1:30336:2} Finished reading configuration. Parsing...
2023-02-26 21:15:14.228: [   CRSPE][628532992]{1:30336:2} Parsing resource types...
2023-02-26 21:15:14.228: [    CRSD][628532992]{1:30336:2} Dump State Starting ...
2023-02-26 21:15:14.228: [    CRSD][628532992]{1:30336:2} State Dump for RTILock
2023-02-26 21:15:14.228: [   CRSPE][628532992]{1:30336:2} Dumping PE Data Model...:DM has [0 resources][0 types][0 servers][0 spools]

— NO ERROR

ohasd/orarootagent_root log

2023-02-26 21:15:08.705: [ora.crsd][1399535360]{0:11:17} [check] DaemonAgent::check returned 0
2023-02-26 21:15:08.706: [    AGFW][2038036224]{0:11:17} ora.crsd 1 1 state changed from: STARTING to: PARTIAL
2023-02-26 21:15:08.706: [    AGFW][2038036224]{0:11:17} Started implicit monitor for [ora.crsd 1 1] interval=30000 delay=30000
2023-02-26 21:15:08.706: [    AGFW][2038036224]{0:11:17} Agent sending last reply for: RESOURCE_START[ora.crsd 1 1] ID 4098:493
2023-02-26 21:15:11.635: [ USRTHRD][1401636608]{0:11:17} Thread:[DaemonCheck:crsd]Daemon Select Thread exiting
2023-02-26 21:15:11.635: [ USRTHRD][1401636608]{0:11:17} Thread:[DaemonCheck:crsd]Initiating a check action
2023-02-26 21:15:11.635: [ USRTHRD][1401636608]{0:11:17} Check action requested by agent etnry point for ora.crsd
2023-02-26 21:15:11.636: [ USRTHRD][1401636608]{0:11:17} Thread:[DaemonCheck:crsd]isRunning is reset to false here
2023-02-26 21:15:11.636: [    AGFW][2038036224]{0:11:17} Agent received the message: RESOURCE_PROBE[ora.crsd 1 1] ID 4097:272
2023-02-26 21:15:11.636: [    AGFW][2038036224]{0:11:17} Preparing CHECK command for: ora.crsd 1 1
2023-02-26 21:15:11.636: [ COMMCRS][2034026240]clscsendx: (0x7f8b1802d420) Physical connection (0x7f8b1802cd20) not active

[  clsdmc][2034026240]Failed to send meta message to connection [(ADDRESS=(PROTOCOL=ipc)(KEY=rac1DBG_CRSD))][11]
2023-02-26 21:15:11.637: [ora.crsd][2034026240]{0:11:17} [check] Error = error 11 encountered when sending messages to CRSD
2023-02-26 21:15:11.637: [ora.crsd][2034026240]{0:11:17} [check] Calling PID check for daemon
2023-02-26 21:15:11.637: [ora.crsd][2034026240]{0:11:17} [check] Process id 69461 translated to
2023-02-26 21:15:11.801: [ COMMCRS][1406367488]clsc_connect: (0x7f8b5800d830) no listener at (ADDRESS=(PROTOCOL=ipc)(KEY=rac1DBG_CRSD))

[  clsdmc][2034026240]Fail to connect (ADDRESS=(PROTOCOL=ipc)(KEY=rac1DBG_CRSD)) with status 9
2023-02-26 21:15:11.801: [ora.crsd][2034026240]{0:11:17} [check] Error = error 9 encountered when connecting to CRSD
2023-02-26 21:15:11.801: [ora.crsd][2034026240]{0:11:17} [check] DaemonAgent::check returned 1
2023-02-26 21:15:11.802: [    AGFW][2038036224]{0:11:17} ora.crsd 1 1 state changed from: PARTIAL to: OFFLINE

crsdOUT.log
当crsd进程crash时,会把call stack 写进out, 其它进程也一样,如agent,ocssd.bin

Dumping CRSD in-memory trace
CRSD Exiting in signalhandler
CRSD handling signal 6
CRSD Skipping dumps. Signal 6  count 2
2023-02-26 21:14:53
Changing directory to /u01/app/11.2.0/grid/log/rac1/crsd
2023-02-26 21:14:53
CRSD REBOOT
CRSD handling signal 11
Dumping CRSD state
Dumping CRSD stack trace


----- Call Stack Trace -----
calling              call     entry                argument values in hex
location             type     point                (? means dubious value)
-------------------- -------- -------------------- ----------------------------
sclssutl_sigdump()+  call     kgdsdst()            000000000 ? 000000000 ?
492                                                7F5A8D303210 ? 7F5A8D3032E8 ?
                                                   7F5A8D307D90 ? 000000003 ?
sclssutl_signalhand  call     sclssutl_sigdump()   00000000B ? 000000000 ?
ler()+70                                           7F5A8D303210 ? 7F5A8D3032E8 ?
                                                   7F5A8D307D90 ? 000000003 ?
__sighandler()       call     sclssutl_signalhand  00000000B ? 000000000 ?
                              ler()                7F5A8D303210 ? 7F5A8D3032E8 ?
                                                   7F5A8D307D90 ? 000000003 ?
_ZNSs6assignERKSs()  signal   __sighandler()       7F5A8D308CB8 ? 7F5A0000D7D8 ?
+19                                                31EB6F32D8 ? 000000000 ?
                                                   00000000E ? 7F5A8D3091D0 ?
_ZN3cls15StringToke  call     _ZNSs6assignERKSs()  7F5A8D308CB8 ? 7F5A0000D7D8 ?
nizerC9ERKSsS2_b()+                                31EB6F32D8 ? 000000000 ?
139                                                00000000E ? 7F5A8D3091D0 ?
_ZN3cls15StringToke  call     _ZN3cls15StringToke  7F5A8D308CB0 ? 7F5A0000D7D8 ?
nizerC1ERKSsS2_b()+           nizerC9ERKSsS2_b()   00138F1E8 ? 000000000 ?
59                                                 00000000E ? 7F5A8D3091D0 ?
_ZN3cls15StringToke  call     _ZN3cls15StringToke  7F5A8D308CB0 ? 7F5A0000D7D8 ?
nizer8toVectorERSt6           nizerC1ERKSsS2_b()   00138F1E8 ? 000000000 ?
vectorISsSaISsEERKS                                00000000E ? 7F5A8D3091D0 ?
sS6_()+71
_ZN6cls_pe12Resourc  call     _ZN3cls15StringToke  7F5A8D3090D8 ? 7F5A0000D7D8 ?
eType25reconstructF           nizer8toVectorERSt6  00138F1E8 ? 000000000 ?
romRepositoryERSt3s           vectorISsSaISsEERKS  00000000E ? 7F5A8D3091D0 ?
etIPS0_St4lessIS2_E           sS6_()
SaIS2_EERKSt3mapISs
S8_ISsSsS3_ISsESaIS
t4pairIKSsSsEEES9_S
aISA_ISB_SE_EEE()+7
86
_ZN6cls_pe18PolicyE  call     _ZN6cls_pe12Resourc  7F5A8D309940 ? 7F5A00006CD0 ?
ngineModule33report           eType25reconstructF  00138F1E8 ? 000000000 ?
ConfigReadVThreadCo           romRepositoryERSt3s  00000000E ? 7F5A8D3091D0 ?
mpletionEPNS0_17Rea           etIPS0_St4lessIS2_E
dConfigContextE()+5           SaIS2_EERKSt3mapISs
92                            S8_ISsSsS3_ISsESaIS
                              t4pairIKSsSsEEES9_S
                              aISA_ISB_SE_EEE()
_ZN6cls_pe18PolicyE  call     _ZN6cls_pe18PolicyE  001BE7360 ? 7F5A00006CA0 ?
ngineModule26readTy           ngineModule33report  00138F1E8 ? 000000000 ?
peAttributesCallBac           ConfigReadVThreadCo  00000000E ? 7F5A8D3091D0 ?
kEPN7cls_ocr16Multi           mpletionEPNS0_17Rea
SubKeyFetchE()+1206           dConfigContextE()
_ZN3cls11ThreadMode  call     _ZN6cls_pe18PolicyE  001BE7360 ? 7F5A00016820 ?
l12processQueueEP7s           ngineModule26readTy  00138F1E8 ? 000000000 ?
ltstid()+3632                 peAttributesCallBac  00000000E ? 7F5A8D3091D0 ?
                              kEPN7cls_ocr16Multi
                              SubKeyFetchE()
_ZN3cls11ThreadMode  call     _ZN3cls11ThreadMode  001B5B650 ? 7F5A8D30AC30 ?
l5runTMEPv()+140              l12processQueueEP7s  00138F1E8 ? 000000000 ?
                              ltstid()             00000000E ? 7F5A8D3091D0 ?
_ZN13CLS_Threading1  call     _ZN3cls11ThreadMode  001B5B650 ? 7F5A8D30AC30 ?
3CLSthreadMain8cppS           l5runTMEPv()         00138F1E8 ? 000000000 ?
tartEPv()+73                                       00000000E ? 7F5A8D3091D0 ?
start_thread()+209   call     _ZN13CLS_Threading1  001C46FC0 ? 7F5A8D30AC30 ?
                              3CLSthreadMain8cppS  00138F1E8 ? 000000000 ?
                              tartEPv()            00000000E ? 7F5A8D3091D0 ?
clone()+109          call     start_thread()       7F5A8D30B700 ? 7F5A8D30AC30 ?

Note:
oops! 看不懂的call stack调用,应该是OS层的调用。

解决方法
Deconfig/Reconfig 分别在两个节点操作,不会重建OCR,只是重新配置集群信息。

# root user
# <$GRID_HOME>/crs/install/rootcrs.pl -deconfig -force
# <$GRID_HOME>/root.sh

打赏

对不起,这篇文章暂时关闭评论。
