Troubleshooting Oracle redo file on SSD wait event ‘log file sync’

最近某客户一套Oracle19c RAC 环境,在负载相对空闲时也面临一个常见的问题”log file sync”, 数据库存储已经是较快的SSD设备, 下面记录一下容易忽略的RAID配置,居然对数据库的影响如此之大的案例。

AWR 现象

Top 10 Foreground Events by Total Wait Time

Event Waits Total Wait Time (sec) Avg Wait % DB time Wait Class
log file sync 1,730 929.9 537.53ms 38.0 Commit
DB CPU 836.5 34.2
db file sequential read 74,417 255.5 3.43ms 10.5 User I/O
control file sequential read 10,547 190.9 18.10ms 7.8 System I/O
Disk file operations I/O 6,744 61.4 9.11ms 2.5 User I/O
gc cr block busy 150 58.7 391.65ms 2.4 Cluster
Disk file Mirror Read 2,536 52.1 20.53ms 2.1 User I/O
gc buffer busy acquire 7,917 37.4 4.72ms 1.5 Cluster
read by other session 3,342 29.4 8.79ms 1.2 User I/O
Sync ASM rebalance 90 6.1 68.18ms .3 Other

Wait Classes by Total Wait Time

Wait Class Waits Total Wait Time (sec) Avg Wait Time % DB time Avg Active Sessions
System I/O 71,772 3,568 49.71ms 145.9 0.3
User I/O 112,767 1,982 17.58ms 81.1 0.2
Other 2,133,760 1,706 799.54us 69.8 0.2
Commit 1,741 936 537.63ms 38.3 0.1
DB CPU 837 34.2 0.1
Cluster 59,415 112 1.89ms 4.6 0.0
Application 863 7 7.93ms .3 0.0
Concurrency 37,936 4 92.57us .1 0.0
Administrative 7 1 99.59ms .0 0.0
Network 48,125 0 7.07us .0 0.0
Configuration 65 0 1.79ms .0 0.0

Host CPU

CPUs Cores Sockets Load Average Begin Load Average End %User %System %WIO %Idle
72 36 2 11.99 5.17 2.0 0.9 4.3 97.1



IO Profile

Read+Write Per Second Read per Second Write Per Second
Total Requests: 12.9 11.5 1.3
Database Requests: 7.4 6.9 0.4
Optimized Requests: 0.0 0.0 0.0
Redo Requests: 0.6 0.0 0.6
Total (MB): 0.1 0.1 0.0
Database (MB): 0.1 0.1 0.0
Optimized Total (MB): 0.0 0.0 0.0
Redo (MB): 0.0 0.0 0.0
Database (blocks): 7.7 6.9 0.7
Via Buffer Cache (blocks): 7.7 6.9 0.7
Direct (blocks): 0.0 0.0 0.0

Note:

可见数据库的LOG FILE SYNC达500ms以上,并且CPU 负载相对空闲,IO吞吐量并不大,top event还有其它数据文件相关的I/O class wait event, 并且都是ms级别,这样的负载对于SSD存储通常应该就是在us级。

查看LOG FILE PARALLEL WRITE

Wait Event Histogram (up to 32 ms)

  • Units for Total Waits column: K is 1000, M is 1000000, G is 1000000000
  • Units for % of Total Waits: us is microseconds, ms is 1024 microseconds (approximately 1 millisecond)
  • % of Total Waits: total waits for all wait classes, including Idle
  • % of Total Waits: value of .0 indicates value was <.05%; value of null is truly 0
  • Ordered by Event (only non-idle events are displayed)
% of Total Waits
Event Waits 1ms to 32ms <512us <1ms <2ms <4ms <8ms <16ms <32ms >=32ms
control file parallel write 213 67.1 .9 3.9 1.1 .2 .2 .3 26.4
db file parallel write 135 81.6 .6 1.6 .4 .1 .2 .2 15.2
log file parallel write 272 69.0 .9 1.7 1.0 .2 .2 .3 26.7



查看当时的OSW IOSTAT信息
zzz ***Mon Jul 25 05:00:01 CST 2022
avg-cpu:  %user   %nice %system %iowait  %steal   %idle
           2.55    0.00    2.64   25.02    0.00   69.79

Device:         rrqm/s   wrqm/s     r/s     w/s    rkB/s    wkB/s avgrq-sz avgqu-sz   await r_await w_await  svctm  %util
sda               0.00     0.00    0.00   64.00     0.00   544.00    17.00     0.00    0.00    0.00    0.00   0.00   0.00
dm-0              0.00     0.00    0.00   13.00     0.00    64.00     9.85     0.00    0.00    0.00    0.00   0.00   0.00
dm-1              0.00     0.00    0.00    0.00     0.00     0.00     0.00     0.00    0.00    0.00    0.00   0.00   0.00
dm-2              0.00     0.00    0.00   51.00     0.00   480.00    18.82     0.00    0.00    0.00    0.00   0.00   0.00
sdb               0.00     0.00    0.00    0.00     0.00     0.00     0.00     0.00    0.00    0.00    0.00   0.00   0.00
sdc               0.00     0.00    0.00    0.00     0.00     0.00     0.00     0.00    0.00    0.00    0.00   0.00   0.00
dm-3              0.00     0.00    0.00    0.00     0.00     0.00     0.00     0.00    0.00    0.00    0.00   0.00   0.00
sdj               0.00     0.00    0.00    0.00     0.00     0.00     0.00     0.00    0.00    0.00    0.00   0.00   0.00
sdk               0.00     0.00    0.00    0.00     0.00     0.00     0.00     0.00    0.00    0.00    0.00   0.00   0.00
sdl               0.00     0.00    0.00    1.00     0.00    16.00    32.00     0.00    1.00    0.00    1.00   1.00   0.10
dm-7              0.00     0.00    0.00    0.00     0.00     0.00     0.00     0.00    0.00    0.00    0.00   0.00   0.00
sdm               0.00     0.00    0.00    2.00     0.00     4.50     4.50     0.00    0.00    0.00    0.00   0.00   0.00
dm-8              0.00     0.00    0.00    3.00     0.00    20.50    13.67     0.00    0.33    0.00    0.33   0.33   0.10
sdn               0.00     0.00    0.00    0.00     0.00     0.00     0.00     1.16    0.00    0.00    0.00   0.00  68.50
sdo               0.00     0.00    1.00    1.00     0.50     4.00     4.50     0.93  288.50  338.00  239.00 346.00  69.20
dm-9              0.00     0.00    0.00    0.00     0.00     0.00     0.00     1.83    0.00    0.00    0.00   0.00  68.50
sdp               0.00     0.00    0.00    0.00     0.00     0.00     0.00     0.67    0.00    0.00    0.00   0.00  67.10
dm-10             0.00     0.00    2.00    1.00     4.50     4.00     5.67     2.17  293.00  320.00  239.00 230.67  69.20
sdr               0.00     0.00    1.00    0.00     4.00     0.00     8.00     1.24  302.00  302.00    0.00 656.00  65.60
sdw               0.00     0.00    0.00    2.00     0.00     9.00     9.00     1.39  522.00    0.00  522.00 500.00 100.00
dm-14             0.00     0.00    0.00    4.00     0.00    13.50     6.75     3.37  558.00    0.00  558.00 250.00 100.00
sdz               0.00     0.00    0.00    2.00     0.00     4.50     4.50     1.98  593.00    0.00  593.00 500.00 100.00
dm-15             0.00     0.00    1.00    1.00     8.00     4.00    12.00     1.94  523.00  787.00  259.00 500.00 100.00
sdaa              0.00     0.00    1.00    1.00     8.00     4.00    12.00     1.26  523.00  787.00  259.00 499.50  99.90
sdab              0.00     0.00    3.00    2.00    96.50     4.50    40.40     1.24  759.00 1000.00  397.50  62.00  31.00
sdac              0.00     0.00   34.00    1.00   352.00     4.00    20.34     0.94   71.83   73.94    0.00   9.00  31.50
dm-16             0.00     0.00    7.00    2.00   257.00     4.50    58.11     2.17  754.89  857.00  397.50  34.44  31.00
sdad              0.00     0.00    4.00    0.00   160.50     0.00    80.25     0.93  749.75  749.75    0.00  77.50  31.00
dm-17             0.00     0.00   69.00    1.00   768.00     4.00    22.06     1.87   78.81   79.96    0.00   4.57  32.00
sdaf              0.00     0.00   35.00    0.00   416.00     0.00    23.77     0.94   85.80   85.80    0.00   9.00  31.50
sdak              0.00     0.00   77.00    1.00   676.00     1.00    17.36     1.26   44.74   45.31    1.00   4.21  32.80
sdam              0.00     0.00   77.00    2.00   724.00    17.00    18.76     1.49   50.19   48.45  117.00   4.14  32.70
sdan              0.00     0.00    2.00    0.00    96.00     0.00    96.00     0.62  998.50  998.50    0.00 154.50  30.90
dm-21             0.00     0.00  154.00    3.00  1400.00    18.00    18.06     2.74   47.50   46.90   78.33   2.14  33.60
sdao              0.00     0.00    3.00    0.00   160.00     0.00   106.67     0.93  999.33  999.33    0.00 103.00  30.90
dm-22             0.00     0.00    5.00    0.00   256.00     0.00   102.40     1.54  999.00  999.00    0.00  61.80  30.90

Note:

可见I/O设备在R/W很小的情况下,await svctm %util相对比较高,问题应该是在OS下层存储端。

Megacli

在操作系统上可以安装使用megacli工具查看和配置RAID, 这里附几个常用命令,更多可查看wiki

Before we go through megacli commands we need to follow megacli concepts.

Adapter - The physical controller which we are going to use, represented by id (usually 0).
Enclosure - The physical chassis the physical drives attached to, represented by id, such as 254,252 etc.
Physical Drives - Physical Hard Disks attached to controller, represented by id, 0,1,2,3 etc.
Virtual Drives - Those drives contains Physical Drives and equal to Raid Devices, represented by id, 0,1,2,3 etc.
Gather info about raid controller
Make sure you have raid controller attached to your server, using lspci.
# lspci | grep -i raid
Output example:

81:00.0 RAID bus controller: LSI Logic / Symbios Logic MegaRAID SAS 2208 [Thunderbolt] (rev 05)

Gather info about raid adapters:

# megacli -AdpGetPciInfo -aAll
Output example:

PCI information for Controller 0
--------------------------------
Bus Number : 5
Device Number : 0
Function Number : 0
Exit Code: 0x00

We can see here the adapters information, we will use the adapter id later on, adapter id is 0.

Gather info about the enclosure

# megacli -EncInfo -a0

Gather info about physical drives
Adapter id is 0.

# megacli -LdPdInfo -a0

Gather info about Virtual drives

# megacli -LDInfo -Lall -a0

Gather info about raid level

# megacli -LDInfo -L2 -a0 | grep -i raid
Output example:
RAID Level : Primary-1, Secondary-0, RAID Level Qualifier-0

We can see here Primary raid level 1 and secondary 0. It means actually raid 0 over raid 1 that is RAID 10.

Cache Policy
Cache Policy’s are how the raid card uses on board RAM to collect data before writing out to disk or to read data before the system asks for it.

WriteBack uses the card’s cache to collect enough data to make a series of long sequential writes out to disk. This is the fastest write method.
WriteThrough tells the card to write all data directly to disk without cache. This method is quite slow by about 1/10 the speed of WriteBack, but is safer as no data can be lost that was in cache when the machine’s power fails.
ReadAdaptive uses an algorithm to see if when the OS asks for a bunch of data blocks sequentially, if we should read a few more sequential blocks because the OS _might_ ask for those too. This method can lead to good speed increases.
ReadAheadNone tells the raid card to only read the data off the raid disk if it was actually asked for. No more, no less.
Cached allows the general use of the cards cache for any data which is read or written. Very efficient if the same data is accessed over and over again.
Direct is straight access to the disk without ever storing data in the cache. This can be slow as any I/O has to touch the disk platters.

# megacli -LDInfo -Lall -aALL

Adapter 0 -- Virtual Drive Information:
Virtual Drive: 0 (Target Id: 0)
Name                :
RAID Level          : Primary-1, Secondary-0, RAID Level Qualifier-0
Size                : 1.090 TB
Sector Size         : 512
Is VD emulated      : No
Mirror Data         : 1.090 TB
State               : Optimal
Strip Size          : 64 KB
Number Of Drives    : 2
Span Depth          : 1
Default Cache Policy: WriteBack, ReadAhead, Direct, No Write Cache if Bad BBU
Current Cache Policy: WriteBack, ReadAhead, Direct, No Write Cache if Bad BBU
Default Access Policy: Read/Write
Current Access Policy: Read/Write
Disk Cache Policy   : Disk's Default
Encryption Type     : None
Default Power Savings Policy: Controller Defined
Current Power Savings Policy: None
Can spin up in 1 minute: Yes
LD has drives that support T10 power conditions: Yes
LD's IO profile supports MAX power savings with cached writes: No
Bad Blocks Exist: No
Is VD Cached: No

Exit Code: 0x00

对于SSD 存储的RAID配置时建议使用Writethrough, ReadAheadNone, Direct, nocache. 因为SSD已经性能远优于HDD,默认的RAID更适用于HDD, 不用预读到RAID 控制器的CACHE, 因为SSD内部CACHE已足够强大,并且是iops也并非瓶颈,使用预读是按strip size预读,以于Oracle DB随机IO 和多会话,这种情况readahead一般不会有什么性能改善,我认为还可能会有读放大。

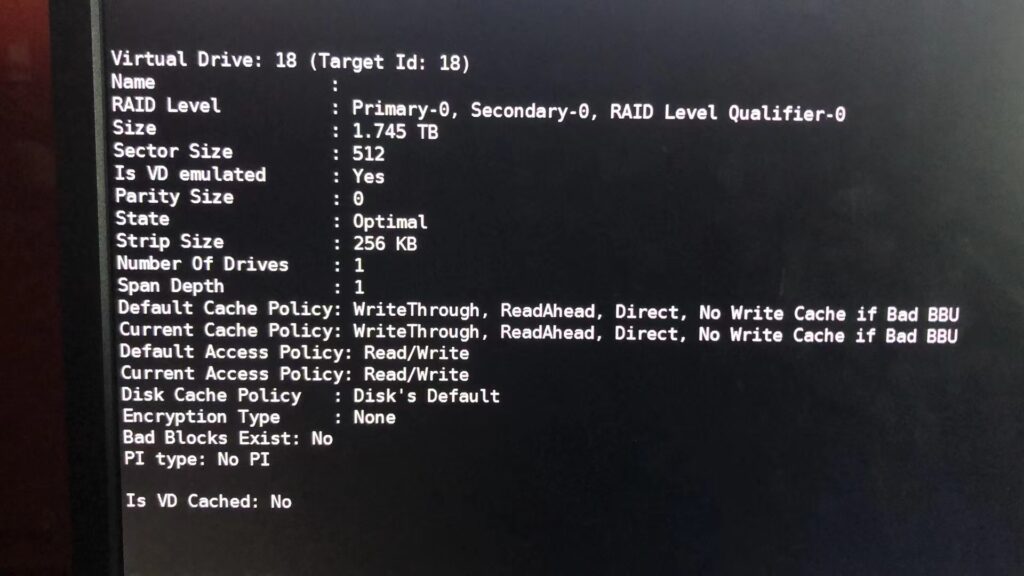

我们看一下这套数据库的RAID配置

Configure RAID set:

./MegaCli -cfgLdAdd -r0 [32:2] [WT] [NORA] [DIRECT] -a0
Where:

r0 = RAID type (r0, r1, r5, etc)
32:2 = HBD ID 32 (Default) and after colon is actual disk# as installed in the backplane.
WT = Write through (can also be WB for Write Back)
NORA = No Read Ahead (can also be Read Ahead (RA) or Adapative Read Ahead (ADRA))
DIRECT = Disk Cache Policy of Disabled (can also be Cached to enable Disk Cache Policy)
a0 = Controller ID

Configure Virtual Disk name:

./MegaCli -LDSetProp -Name SSD_Cache_Disk1 -L1 -a0
Where:

SSD_Cache_Disk1 = Name of the virtual disk, cannot have spaces or quotes
L1 = Virtual Disk volume that is going to be labeled.
a0 = Controller ID

禁用了ReadAhead功能后效果

$ megacli -LDSetProp NORA -L 1,2,3 -aall



Note:

log file parallel write恢复到us级正常水平, 一切IO都有所改善,I/O性能问题消失。



References
Megacli wiki
https://raid.wiki.kernel.org/index.php/Hardware_Raid_Setup_using_MegaCli
AID Stripe Size and filesystem Readahead

Optimal RAID Stripe Size and filesystem Readahead for RAID-10?
