Troubleshoot 11.2.0.4 CRS stop fail, ora.asm resource “UNKNOWN”state

前几日朋友一套CRS停不下来,RAC版本是11.2.0.4, 停在关闭ASM阶段, 手动尝试了停资源也不成功,使用-f选项一样失败, 后来发现在这还存在一个bug,简单记录一下。

crsctl stop crs

失败提示crs-2675 stop of ‘ ora.asm’ on xx failed.

crs-5022 stop of resource ‘ora.crsd’ filed: current state is “UNKNOWN”

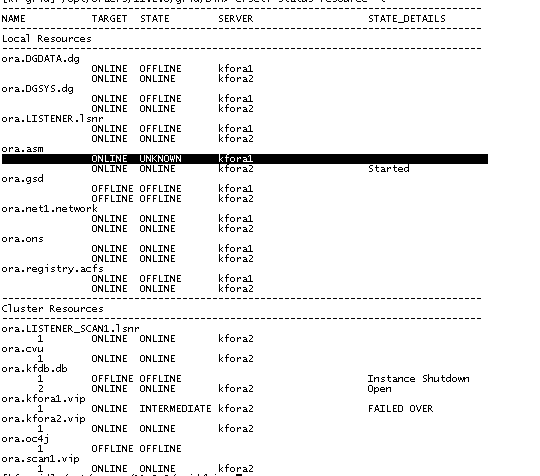

使用crsctl stop crs -f 同样失败,查看crs res 状态

显示ora.asm状态为UNKNOWN,

# oraagent_grid trace

2018-07-25 07:27:23.706: [ora.DGSYS.dg][2585]{1:7667:25576} [check] DgpAgent::initOcrDgpSet exit }
2018-07-25 07:27:23.707: [ora.DGSYS.dg][2585]{1:7667:25576} [check] DgpAgent::inUseByOcr - OCR is on diskgroup DGSYS
2018-07-25 07:27:23.707: [ora.DGSYS.dg][2585]{1:7667:25576} [check] DgpAgent::runCheck: OCR dg returning OFFLINE
2018-07-25 07:27:23.707: [    AGFW][2057]{1:7667:25576} ora.DGSYS.dg kfora1 1 state changed from: STOPPING to: PLANNED_OFFLINE
2018-07-25 07:27:23.708: [    AGFW][2057]{1:7667:25576} Agent sending last reply for: RESOURCE_STOP[ora.DGSYS.dg kfora1 1] ID 4099:5086977
2018-07-25 07:27:24.677: [ora.DGDATA.dg][1046]{1:7667:25576} [stop] DgpAgent::stop reason is dependency, original reason is system
2018-07-25 07:27:24.682: [ora.DGDATA.dg][1046]{1:7667:25576} [stop] ORA-15032: not all alterations performed
crs: diskgroup "DGDATA" does not exist or is not mounted

2018-07-25 07:27:24.682: [ora.DGDATA.dg][1046]{1:7667:25576} [stop] DgpAgent::stop: error 15032
2018-07-25 07:27:24.682: [ora.DGDATA.dg][1046]{1:7667:25576} [stop] DgpAgent::stop: ignoring err diskgroup is dismounted
2018-07-25 07:27:24.682: [ora.DGDATA.dg][1046]{1:7667:25576} [stop] DgpAgent::stop reason is dependency, original reason is system
2018-07-25 07:27:24.683: [ora.DGDATA.dg][1046]{1:7667:25576} [stop] DgpAgent::getConnxn connected
2018-07-25 07:27:24.684: [ora.DGDATA.dg][1046]{1:7667:25576} [stop] ORA-15032: not all alterations performed
ORA-15001: diskgroup "DGDATA" does not exist or is not mounted

2018-07-25 07:27:24.685: [ora.DGDATA.dg][1046]{1:7667:25576} [stop] DgpAgent::stop: error 15032
2018-07-25 07:27:24.685: [ora.DGDATA.dg][1046]{1:7667:25576} [stop] DgpAgent::stop: ignoring err diskgroup is dismounted
2018-07-25 07:27:24.685: [ora.DGDATA.dg][1046]{1:7667:25576} [stop] DgpAgent::stop reason is dependency, original reason is system
2018-07-25 07:27:24.686: [ora.DGDATA.dg][1046]{1:7667:25576} [stop] DgpAgent::getConnxn connected
2018-07-25 07:27:24.687: [ora.DGDATA.dg][1046]{1:7667:25576} [stop] ORA-15032: not all alterations performed
ORA-15001: diskgroup "DGDATA" does not exist or is not mounted

# ASM alert log

SQL> ALTER DISKGROUP DGSYS DISMOUNT  /* asm agent *//* {1:7667:25576} */
Wed Jul 25 07:27:23 2018
NOTE: Instance updated compatible.asm to 11.2.0.0.0 for grp 2
Wed Jul 25 07:27:23 2018
ORA-15032: not all alterations performed
ORA-15027: active use of diskgroup "DGSYS" precludes its dismount
ERROR: ALTER DISKGROUP DGSYS DISMOUNT  /* asm agent *//* {1:7667:25576} */
Wed Jul 25 07:27:23 2018
SQL> ALTER DISKGROUP DGDATA DISMOUNT  /* asm agent *//* {1:7667:25576} */
NOTE: cache dismounting (clean) group 1/0x93932725 (DGDATA)
NOTE: messaging CKPT to quiesce pins Unix process pid: 1835436, image: oracle@kfora1 (TNS V1-V3)
Wed Jul 25 07:27:23 2018
NOTE: LGWR doing clean dismount of group 1 (DGDATA)
NOTE: LGWR closing thread 2 of diskgroup 1 (DGDATA) at ABA 37.6567
NOTE: LGWR released thread recovery enqueue
Wed Jul 25 07:27:24 2018
kjbdomdet send to inst 2
detach from dom 1, sending detach message to inst 2
Wed Jul 25 07:27:24 2018
NOTE: detached from domain 1
NOTE: cache dismounted group 1/0x93932725 (DGDATA)
Wed Jul 25 07:27:24 2018
GMON dismounting group 1 at 8 for pid 29, osid 1835436
NOTE: Disk DGDATA_0000 in mode 0x7f marked for de-assignment
NOTE: Disk DGDATA_0001 in mode 0x7f marked for de-assignment
NOTE: Disk DGDATA_0002 in mode 0x7f marked for de-assignment
NOTE: Disk DGDATA_0003 in mode 0x7f marked for de-assignment
SUCCESS: diskgroup DGDATA was dismounted
NOTE: cache deleting context for group DGDATA 1/0x93932725
SUCCESS: ALTER DISKGROUP DGDATA DISMOUNT  /* asm agent *//* {1:7667:25576} */
SQL> ALTER DISKGROUP DGDATA DISMOUNT  /* asm agent *//* {1:7667:25576} */
ORA-15032: not all alterations performed
ORA-15001: diskgroup "DGDATA" does not exist or is not mounted
ERROR: ALTER DISKGROUP DGDATA DISMOUNT  /* asm agent *//* {1:7667:25576} */
SQL> ALTER DISKGROUP DGDATA DISMOUNT  /* asm agent *//* {1:7667:25576} */
ORA-15032: not all alterations performed
ORA-15001: diskgroup "DGDATA" does not exist or is not mounted
ERROR: ALTER DISKGROUP DGDATA DISMOUNT  /* asm agent *//* {1:7667:25576} */
SQL> ALTER DISKGROUP DGDATA DISMOUNT  /* asm agent *//* {1:7667:25576} */
ORA-15032: not all alterations performed
ORA-15001: diskgroup "DGDATA" does not exist or is not mounted
ERROR: ALTER DISKGROUP DGDATA DISMOUNT  /* asm agent *//* {1:7667:25576} */
SQL> ALTER DISKGROUP DGDATA DISMOUNT  /* asm agent *//* {1:7667:25576} */
ORA-15032: not all alterations performed
ORA-15001: diskgroup "DGDATA" does not exist or is not mounted
ERROR: ALTER DISKGROUP DGDATA DISMOUNT  /* asm agent *//* {1:7667:25576} */
SQL> ALTER DISKGROUP DGDATA DISMOUNT  /* asm agent *//* {1:7667:25576} */
ORA-15032: not all alterations performed
ORA-15001: diskgroup "DGDATA" does not exist or is not mounted
ERROR: ALTER DISKGROUP DGDATA DISMOUNT  /* asm agent *//* {1:7667:25576} */

Note:

从asm alert log看dgdata 磁盘组一共有6次尝试dismount, 第1次已经成功,后5次都是失败,所以报出了ora-15001错误。

原因:

当前版本是11.2.0.4.4  ,MOS中发现该版本存在一个BUG,在11.2.0.4.8中修复。

The issue was investigated in:

Bug 17816316 – ORA-15001 IN ASM ALERT LOG WHEN STOPPING CRS IN 11.2.0.4 RAC

Which is closed as duplicate of:

Bug 16798862 – FAIL TO START DB SERVICE BECAUSE OF PLS-553

The fix is included in GIPSU 11.2.0.4.8, apply latest GI PSU to fix the problem, or ignore the messages if patch can’t be applied immediately.

可以尝试KILL 进程,但是后来客户重启了OS,启动正常。
